SEMI-AUTOMATIC e-Liquid Filling Machine




Ecig eLiquid eJuice Filling Machine - Model AMT-X36
American Manufacturer of High Quality Filling Machines - Now For Electronic Cigarettes. Automated Machine Technologies, Inc. (AMT) is bringing its 20 years of design and manufacturing expertise in pharmaceutical packaging systems to the e-cigarette industry. We are the first US Company to offer automated machines specifically designed for filling nicotine liquid, also known as e-liquid, e-juice, and smoke juice, into e-cig cartomizers, disposables, and bottles. The AMT-X36 is an economical solution to automating the e-Liquid filling process.

Quick Facts about AMT-X36 Semi-Automatic eLiquid Filling Machines:

  • Fill volumes from 0.2ml to 30ml - easily adjustable
  • Tray with 6x6 matrix holds 36 small bottles
  • Trays with 5x5, 4x4 and 3x3 matrix for larger bottles to fit into the foot-print of one machine
  • Includes 2 trays for your product
  • Spring Loaded Indexing System - trays click into position for filling
  • No electric circuits are used, small portable air compressor only, such as for inflating tire
  • Easy changeover - swap trays and tubing in a few minutes
  • Designed and Manufactured in U.S.A.


  •

    AUTOMATIC e-Liquid Filling System


    Ecig eLiquid eJuice Bottle Packaging system:
  • Speed up to 40 Bottles Per Minute
  • 48" Rotary Unscrambling Table
  • Filling & Capping Monoblock easily adjustable for bottles from 5mL to 200 mL
  • 12 foot Conveyor
  • 24" Vibratary Cap Feeder Bowl with motorized adjustments
  • Automatic Bottle labeling system with easy adjustments
  • Robot for loading bottles into boxes
  •



    Automatic e-cigarettes cartomizer e-cig filling machine
    e-Cigarette Cartomizers Precision Filling
    High Speed Production Machine for over 700 parts per minute

    High speed production systems available via licensing agreements



    NEW DEVELOPMENT: High Speed e-Cigarettes Cartomizers Filling Production Machine
    Innovative, patent-pending peristaltic pump technology for viscous liquids is superior to cumbersome piston pumps - allows for sterile fluid path without contacting any moving parts. Switching to different liquids and flavors is achieved in 10 minutes or less. Video is for reference only. Patent-pending liquid injection nozzles do not dispense into center flow tube (not displayed).

    Automate your liquid filling process for e-cig cartomizer or small bottle with e-juice, e-liquid solution of propylene glycol PG, glycerin VG and PEG400 - precision sterile filling, fast throughput of over 700 cartomizers per minute.

    The AMT eFill™ aseptically and precisely fills test culture tubes and small bottles. The system is ideally suited to automatically fill e-Liquid or e-Juice, glycol-glycerin solution, into e-cig cartomizers. An optional diving nozzle mechanism plunges the filling nozzles into the container for increased production speeds without splashing. Fill volumes are programmable from the touch screen for 0.1 ml up to 50 ml with resolution of 0.001ml and precision down to 1%. A programmable indexing table with nests to accommodate operator (or robot) loaded racks and trays automatically positions the containers under the filling nozzles.

    e-Cigarette Cartomizers Filling
    Click image for video (6MB)
    e-Cigarette Cartomizers Filling Specially designed for glycol-glycerin solutions, AMT™ Peristaltic Transfer Pump eliminates a need for pressure tank - typically used with viscous fluids, forcing higher product flow for increased production rates. The Transfer Pump is servo-synchronized with the dispensing unit, such as forming a compound periodic flow characteristic of the tandem system that is digitally compensated by the EqualFlow™ method (US Patent Number 6,393,338) for high precision in fast fluid dispensing.

    The AMT eFill™ replaces piston style pumps while maintaining all the benefits of peristaltic pumps; minimal product contact parts consist of peristaltic tubing and 316L Stainless Steel manifold and nozzles, easily flushed or removed for sterilization. The quick disconnect peristaltic tubing cartridge is easily flushed or exchanged when going to different liquids and flavors. Production recipes are stored as program numbers and allow for immediate changeover from the friendly touch screen.

    Capacity
    • For thin and semi-viscous fluids, such as glycol-glycerin solutions dispensing
    • 0.1 ml up to 50 ml with resolution of 0.001ml
    • High speed productions, over 700 containers per minute
    • Dispensing precision down to 1% CV
    e-Juice Bottles Filling
    Click image for video (6MB)
    e-juice-Bottle Filling Construction
    • cGMP compliant design for cleanroom operation
    • Stainless steel external construction, Teflon coated hard anodized aluminum and FDA approved high performance plastics
    • Drive components and electrical systems are enclosed and isolated from sterile zones
    • Smooth stainless steel enclosure for easy wipe down; clean in place
    • Sealed bearings; no lubrication points
    • Virtually maintenance free
    Control Features
    • Color touch screen with pre-programmed software and user-friendly menus; Wi-Fi capable for wireless remote programming and data acquisition
    • Automatic cartomizer positioning via programmable indexing table with nest to accommodate (220) cartomizers with 10x22 matrix tray
    • Diagnostic features such as jog forward, toggle nozzle dive, testing all I/O functions easily accessible from touch screen
    • Programmable fill volume, pump speed, indexing table speed and travel; stored as production recipes for immediate changeover
    • PLC I/O port for fully automatic setups

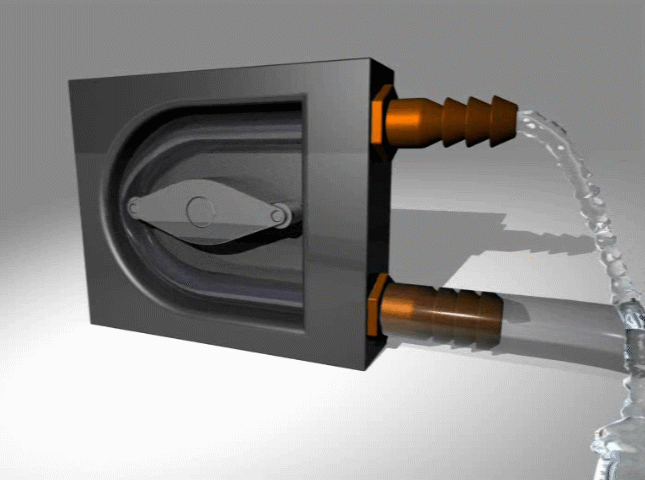

    Peristaltic pump principle
    Click to Zoom-In
    Automatic e-cig cartomizer filling machine Pump and Product Contact Parts
    • Servo-programmable peristaltic pump with EqualFlow™ digital compensation for unmatched precision, sterile non-contact filling; no valves; suitable for disposable technology
    • 316L stainless steel nozzles and manifold along with peristaltic tubing are the only fluid contact parts and are easily removable for sterilization
    • Cross contamination is eliminated by simply replacing tubing, or having dedicated tubing for each product
    • Compatible with quick disconnect 10-nozzle cartridge with heavy-duty peristaltic tubing for lasting performance
    • Quick pump purging and priming, minimal holdup volume
    • Drip-less, clean operation with suck back system


    For automatic filling e-Cigarettes Cartomizers and re-filling bottles with e-Juice, see video: e-Cig Cartomizers filling Video (6MB)

    Contact us for liquid packaging solutions:

    Office@AMTLiquidFilling.com              (919) 361 0121
